    20W Solar LED street Light ABS material ALL IN ONE with time control light control and PIR sensor

    Ask Lasest Price
    Brand Name : Waytop
    Model Number : WT-SSL-01-20W-C
    Price : USD8.8-16.5/PCS
    Payment Terms : T/T
    Supply Ability : 50000pcs per month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    20W Solar LED street Light ABS material ALL IN ONE with time control light control and PIR sensor

    20W ABS ALL IN ONE Solar LED street Light with time control light control and PIR sensor


    1)Power: 20W ALL IN ONE Solar LED street Light
    2)LED QTY: 40pcs 3V1W2835
    3)Solar panel: 7W/6V
    4)Panel size: 171*291MM Battery: LiFePO4 3.2V/8000mA
    5)Charging time: 4-6H Work time: 10-12H
    6)Material: ABS
    7)Waterproof:IP65
    8)Rainy days : 2 days

    9)Warranty: 2 years

    10)Packing:10pcs/CTN;

    11)Weight:G.W:15KGS;

    12)Carton size:42*31*44CM

    Light control+PIR Motion sensor LED solar street Light


    Exploded view

    LED solar street Light with time control light control and PIR sensor install way:

    1)Wall mounting

    2)Pole mounting


    LED solar street Light Pole with time control light control and PIR sensor size:Φ45*500mm


    LED solar street Light PIR sensor working mode:

    1)100% brightness when people walk into the area

    2)100% brightness for 30 seconds after people walk out of the area

    3)100% brightness dim to 30% brightnes after 30 seconds

    4)30% brightness when there is nobody in the area at night


    We also have 40W and 60W LED solar street Light with time control light control and PIR sensor:


    40W LED solar street Light with time control light control and PIR sensor:

    60W LED solar street Light with time control light control and PIR sensor:



    Model No.Main ParameterControllerPacking
    WT-SSL-01-20W-CPower: 20W
    LED QTY: 40pcs 3V1W2835
    Solar panel: 7W/6V
    Panel size: 171*291MM Battery: LiFePO4 3.2V/8000mA
    Charging time: 4-6H Work time: 10-12H
    Material: ABS
    IP65
    Warranty: 2 years
    Light control+
    PIR Motion sensor
    10pcs/CTN; G.W:15KGS; Carton size:42*31*44CM
    WT-SSL-01-40W-CPower: 40W
    LED QTY: 80pcs 3V1W2835
    Solar panel: 9W/6V
    Panel size: 383*193MM Battery: LiFePO4 3.2V/10000mA
    Charging time: 4-6H Work time: 10-12H
    Material: ABS
    IP65
    Warranty: 2 years
    5pcs/CTN; G.W:11KGS; Carton size:52.5*36.5*25.5CM
    WT-SSL-01-60W-CPower:60W
    LED QTY: 120pcs 3V1W2835
    Solar panel: 13W/6V
    Panel size: 498*208MM Battery: LiFePO4 3.2V/15000mA
    Charging time: 4-6H Work time: 10-12H
    Material: ABS
    IP65
    Warranty: 2 years
    5pcs/CTN; G.W:14.5KGS; Carton size:65*36.5*27CM

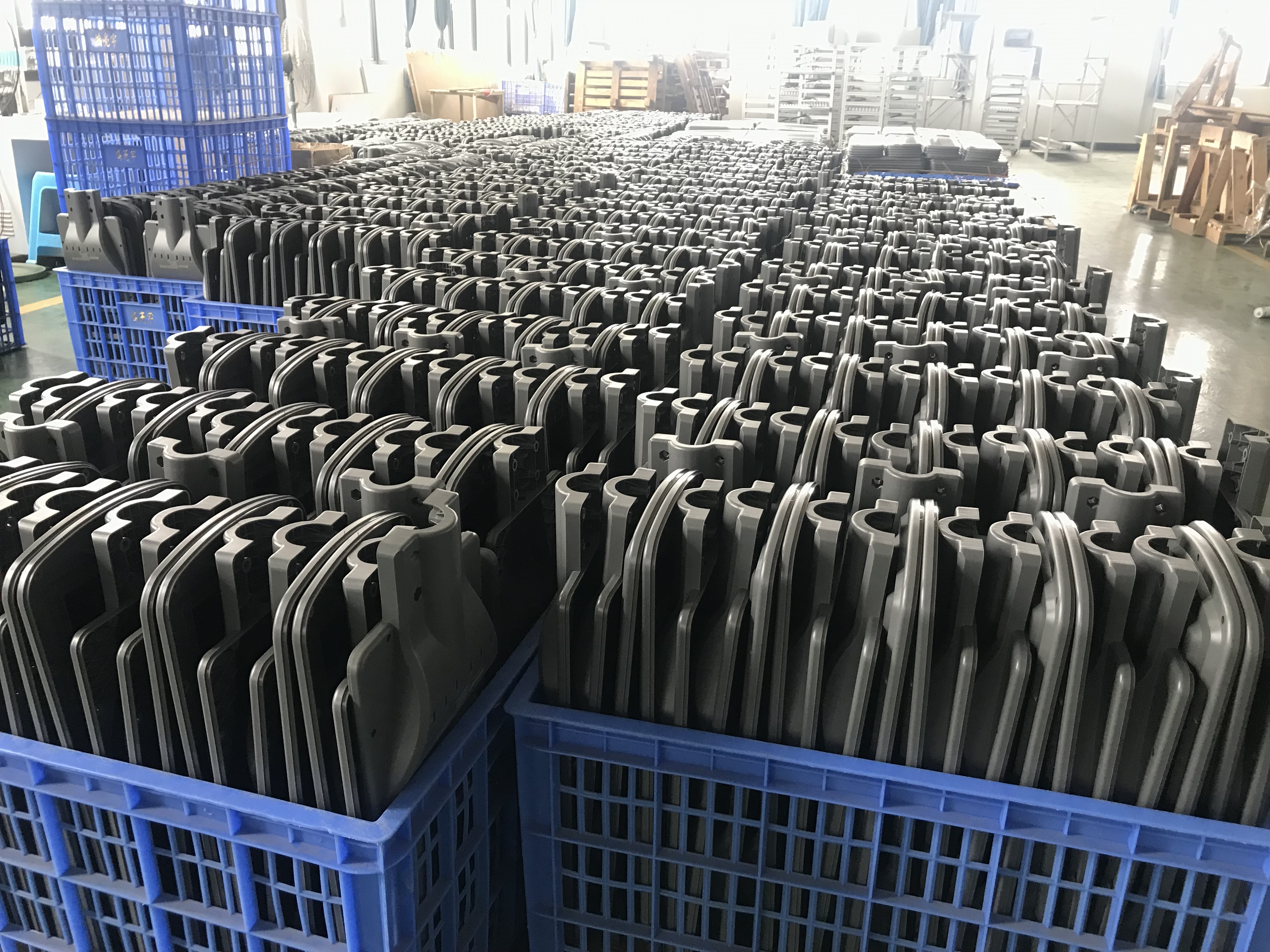

    LED solar street light production:

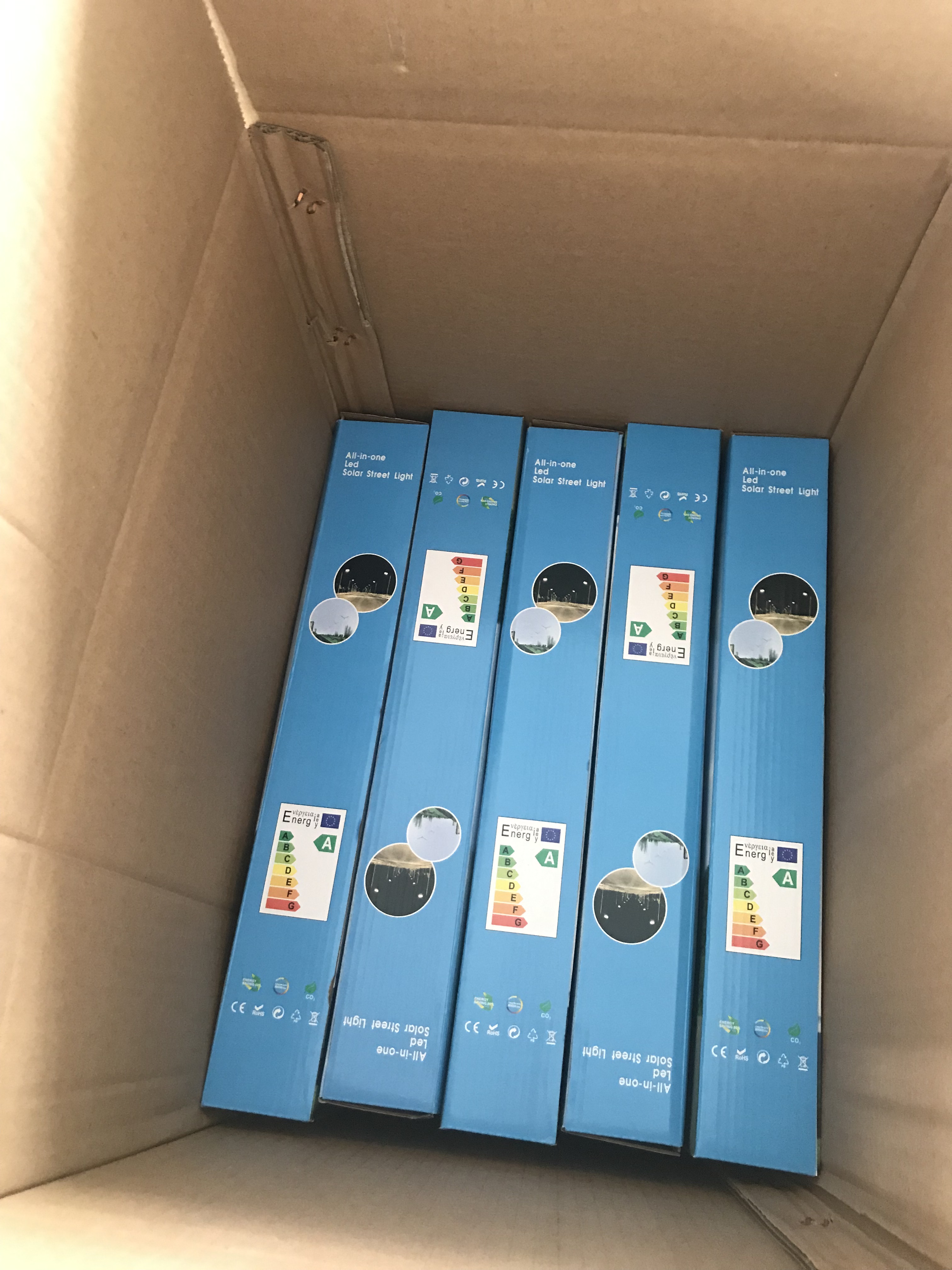

    LED solar street light packing:10PCS/CTN

    Carton size:42*31*44CM

    G.W:15KGS/CTN


    Application:Countryside,home ,courtyard


    Model NO.WattInput VoltageLighting EffectBatteriesPanelInstall Height
    WT-SSL-01-20W-C20W

    3.2V


    120-150LM/W

    8 AH7W3-4M
    WT-SSL-01-40W-C40W10 AH9W3-4M
    WT-SSL-01-60W-C60W15 AH13W4-5M
