200W Shoebox LED street Light IP65 Aluminum material High lumen for
highway city road use warranty 5 years
1)Material : Aluminum
2)LED Type: 3030
3)Input Voltage: AC85-265V
4)Luminous Flux:100-120LM/W
5)Frequency Range(HZ):50-60Hz
6)Beam angle(Degree):155*80
7)Color Temperature(K):2700K-6500K
8)Power factor(PF):>0.9
9)Warranty:5 Years
10)Watt:200W;
11)Size:552*405*88mm
12)Packing:1pcs/CTN
13)Carton size:60*45.5*11.5cm
1. High quality power supply,input voltage AC85-265V.The power
efficiency is more than 88%, power factor>0.92. 1W LED, which ensure high stability and also reduce the death rate
of the leds
3. Work without strobe, fast transient response; A wide range of
working voltage.
4. Low energy consumption, matching high efficiency
constant-current driver, 60% energy saving; with good resistance to
over-current,over-voltage, lightning, high temperature, which fully
ensure long life span and high stability of the products.5. Durable lights with long life spn up to 50000hours; No need replace
the lights frequently just make the regular maintenance.
6. Nice appearance and non-fouling properties, Protection class IP65.
LED street Light front view:

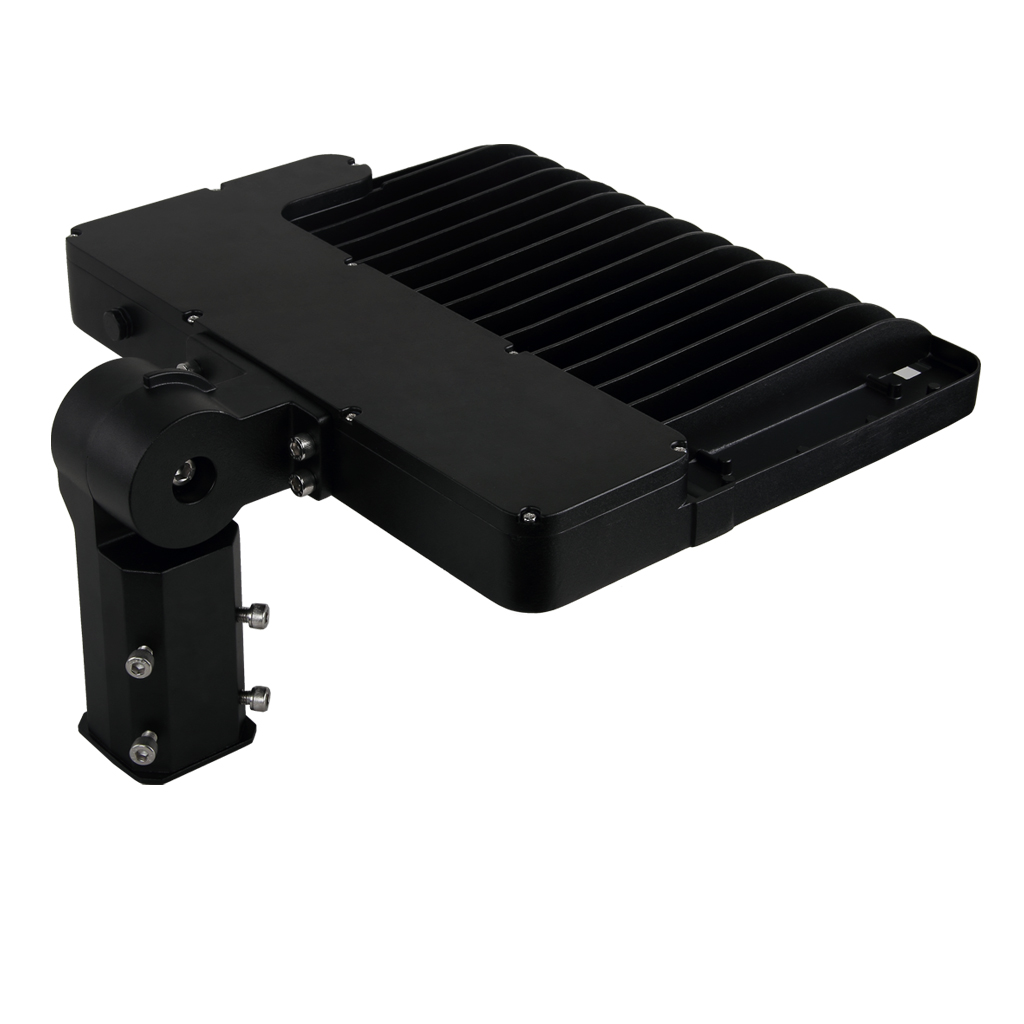

LED street Light back side view
200W Shoebox LED street Light IP65 Aluminum material High lumen
| Item NO. | Watt | LED Data | CCT | Lumens | LED Driver Data | Housing color | Beam angle | Product size | Net weight | Gross weight | PCS/CTN | Outer carton size |
| K | LM | ° | mm | KG | KG | PCS | CM |
| WT-SL-AK-100W | 100W | San′an chip 3030/1W/6.0-6.2V/Lumen 120-130LM |
3000K/6500K | 110-120LM/W | Input Voltage AC85-265V;154 pcs LED | Black | 155*80° | 480*320*88mm | 3.9KG | 4.2KG | 1 | 53*37.5*11.5cm |
| WT-SL-AK-150W | 150W | Input Voltage AC85-265V;280 pcs LED | 507*405*88mm | 4.97KG | 5.3KG | 1 | 56.5*45.5*11.5cm |
| WT-SL-AK-200W | 200W | Input Voltage AC85-265V;392 pcs LED | 552*405*88mm | 5.4KG | 5.8KG | 1 | 60*45.5*11.5cm |
| WT-SL-AK-300W | 300W | Input Voltage AC85-265V;560 pcs LED | 663*407*110mm | 6.4KG | 6.8KG | 1 | 71*45.5*13.5cm |

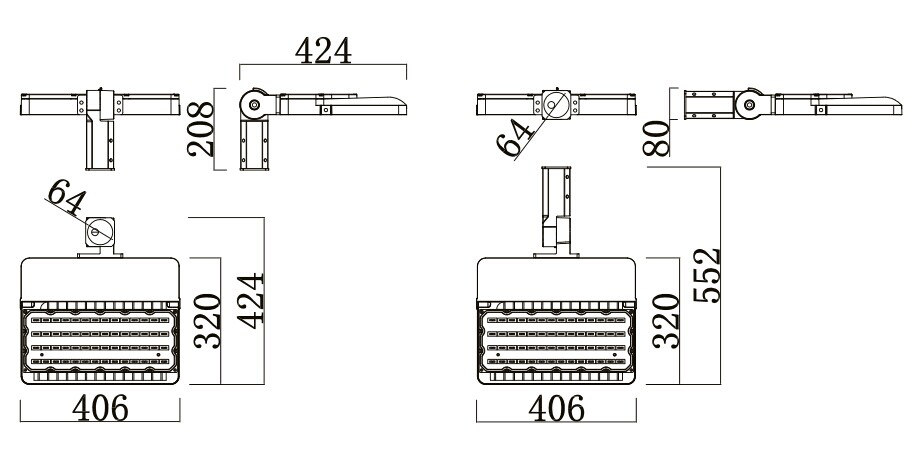

LED street Light 100W Size:
LED street Light 150W Size:
LED street Light 200W Size:
LED street Light 300W Size:
Our test equipment:
Packing:
1PCS/CTN
200W Shoebox LED street Light IP65 Aluminum material High lumen
| Model NO. | Watt | Lumen(LM) | CRI(Ra) | Size(MM) |
| WT-SL-AK-100W | 100W |
100-120LM/W
|
>80
| 480*320*88mm |
| WT-SL-AK-150W | 150W | 507*405*88mm |
| WT-SL-AK-200W | 200W | 552*405*88mm |
| WT-SL-AK-300W | 300W | 663*407*110mm |
